Navien Boilers

Navien is a global leader in high efficiency water heaters and boilers for both residential and commercial applications. Navien’s condensing tankless technology provides top of the line tankless water heating services, ensuring on demand hot water that never runs out.

  1. When a hot water tap is opened the unit detects the flow.
  2. The flow sensor activates to determine the amount of hot water needed.
  3. The igniter activates.
  4. The gas control valve opens to supply the correct amount of gas.
  5. The fan and venturi activate to provide the correct amount of gas and fuel.
  6. The premix burner ignites providing a flame to heat the water.
  7. Cold water is pre heated in the secondary heat exchanger.
  8. Pre heated water passes from the secondary to the primary heat exchanger.
  9. The unit determines outgoing set temperature and adjusts the flame to heat the water.
  10. Heated water moves to the buffer tank.
  11. Desired hot water amount delivered to the faucet.

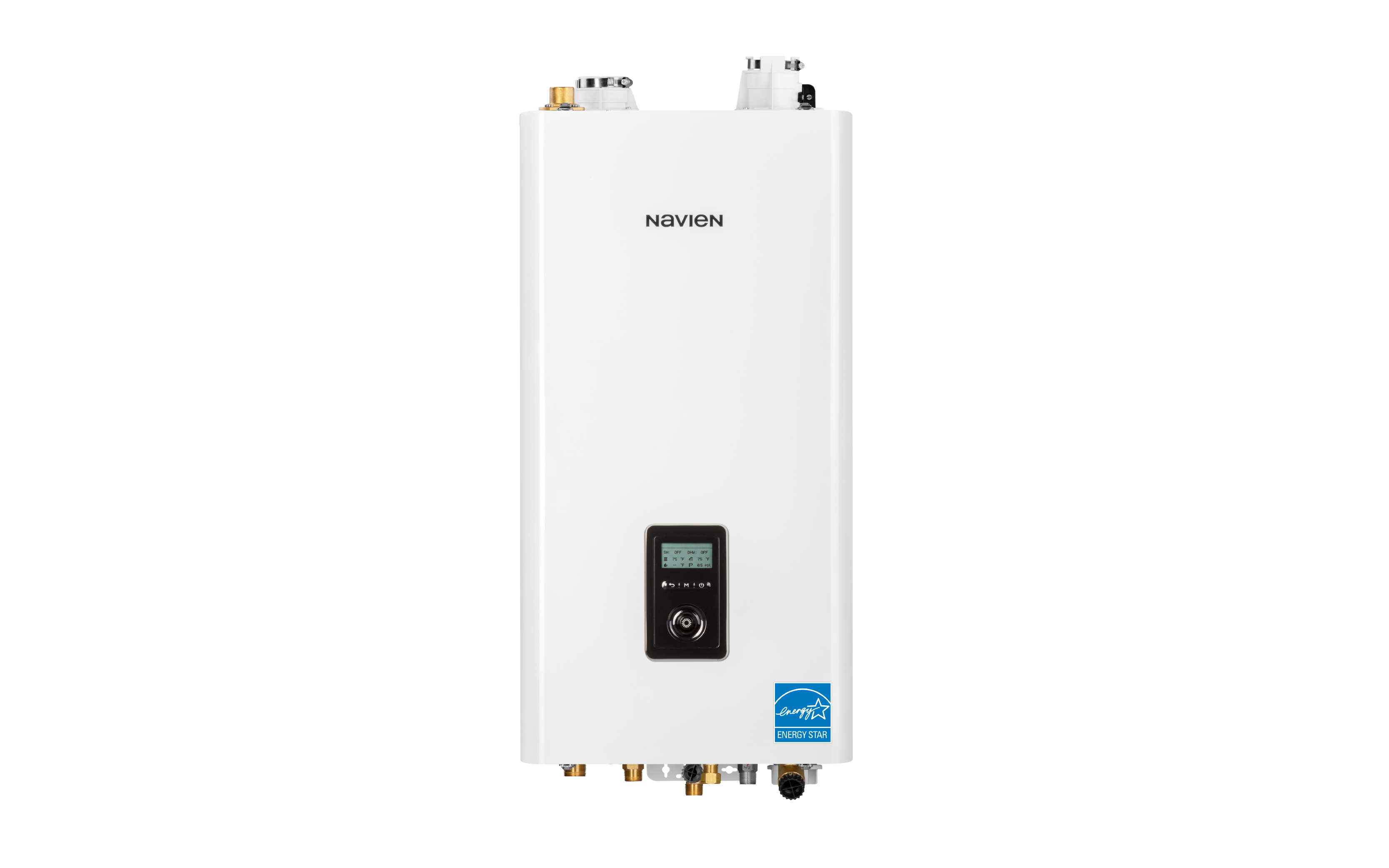

Navien-58
Navien-59

Helpful Links

At Mits Air, we believe in training.

view all training

NFC Series Condensing Combi-Boilers

Condensing Combi Boilers

  • The first high efficiency tankless condensing combination boiler with the capacity to supply both heat &
    domestic hot water (“DHW”) for larger homes
  • Residential
  • Air handler
  • Hydronic heating
  • Hydronic fan coil
  • Baseboard radiator
  • Radiant floor
  • Provide heat to the whole house, and run two showers and dishwashers at the same time!
  • Half the conventional installation time
  • Fewer callbacks, longer life, faster heating

Condensing Fire Tube Combi-Boiler

  • The ultimate space heating and DHW comfort package
  • Domestic hot water, finned tube baseboards, cast iron baseboards, radiant floor heating, fan coils, radiators, air handlers
  • Space heating up to 199k BTU/H
  • DHW up to 199k BTU/H
  • DHW module with mixing and water adjustment valves
  • Multiple venting options up to 150’
  • Common venting up to 8 units and cascading up to 16 units
  • AFUE 95% and 11:1 Turndown Ratio
  • Energy Star certified
  • Space savings design
  • Can be cascaded with Navien NPE water heater
  • Easy to use, elegant and clean appearance

NHB & NFB Series Condensing Boilers

  • Takes 80% less space than traditional floor standing boiler & tank water heater.
  • TSSA Gas Code Standard: 3/4″ Gas Pipe – no need to install extra gas supply!
  • Operates at minimum gas pressure of 3.5 inches of water column, allowing for easy conversion from natural gas to LP
  • 1″ Pressure Relief Valve Included
  • Turn down ratio of 6:1 for heating and 11:1 for DHW
  • Ultra Condensing Efficiency
  • Field Convertible Gas System
  • Dual Stainless Steel Heat Exchangers, creating the highest flow rate of any combi-boiler in the industry (4.5 GPM@77° temperature rise for DHW)
  • SS DHW Plate Heat Exchanger
  • 2″ PVC Venting up to 60′ – fits through existing vents, no need for new drilling holes!
  • 3″ PVC Venting up to 150′
  • Integrated Remote Control
  • Can be cascaded with NPE unit for large hot water flow demand
  • Residential Warranty (NPE): 10-yr. heat exchanger limited warranty, 5-yr. parts limited warranty, 1-yr. labour limited warranty. For more information click here.

Condensing Gas Boilers

NHB Series

  • Much more efficient and longer lasting than old fashioned boilers
  • 95% AFUE recognized as Energy Star Most Efficient rating
  • Energy Star certified
  • Takes 80% less space than floor standing boilers
  • Easy to use
  • Industry leading TDR, up to 15:1
  • Dual stainless steel heat exchangers
  • SCH 40 2” PVC venting up to 60’
  • SCH 40 3” PVC venting up to 150′
  • ½ Gas Pipe capable up to 40’
  • Field convertible gas system NG/LP
  • Cascading capable
  • Outdoor air sensor

Condensing Wall Hung Fire Tube Boiler

NFB Series

  • Much more efficient and longer lasting than old fashioned boilers
  • 95% AFUE recognized as Energy Star Most Efficient rating
  • Energy Star certified
  • Takes 80% less space than floor standing boilers
  • Easy to use
  • TSSA Gas code standard: ½ gas pipe up to 24’
  • Patented stainless steel fire tube heat exchanger
  • Advanced controls and intuitive display
  • Common venting up to 8 boilers and cascading up to 16 boilers
  • Lightweight
